Guide PS610 professional industrial thermal camera

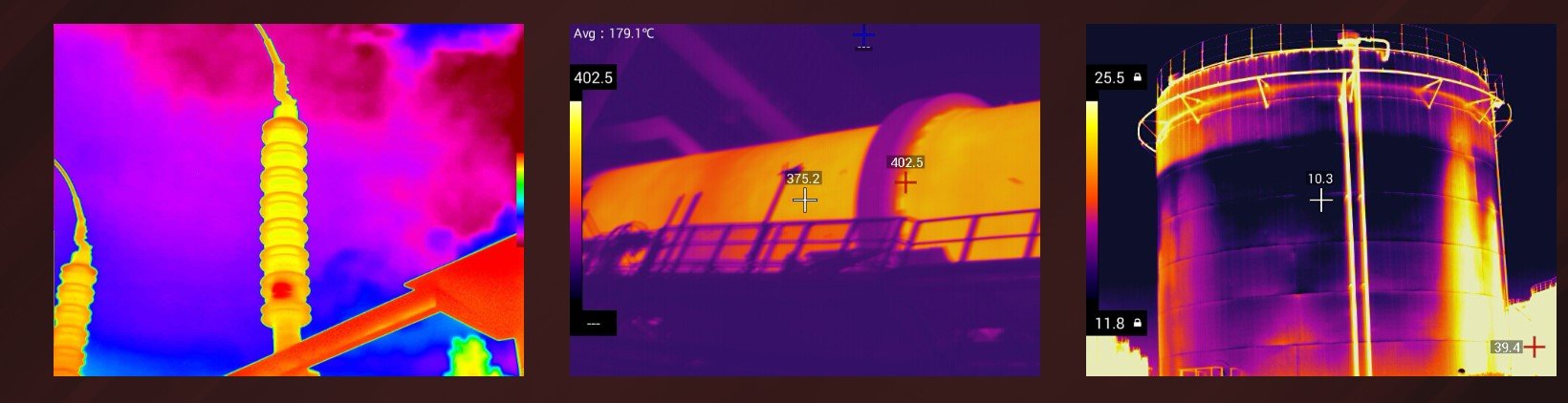

The PS610 is excellent for testing electrical systems in the petrochemical industry, building engineering testing and various industrial plants. The PS610 is perhaps the best thermal camera in its class. The high sensor resolution of 640x480 pixels enables the immediate detection, accurate measurement and selection of overheating of electrical and mechanical surfaces on the 5-inch, 1280x720 pixel resolution touch screen, which has excellent brightness even in daylight conditions. Thanks to the ergonomic design of the device, the display can be rotated, so any surface can be conveniently examined with it. Its own viewfinder also has an excellent image, as the manufacturer has installed an LCOS monitor with a resolution of 1280x960 pixels. The Android system running on the camera makes it possible not only to use it simply as a thermal camera, but also to function as a mobile terminal on which many applications can be run.

The device works with an accuracy of +/-1°C or +/-1% in the following temperature intervals:

-40 - +150°C / +100 - 800°C / 700 - 2000°C (in the temperature range of 0 and +100°C up to +/- 0.5°C)

As a professional device, it can provide measurement data at up to 20 different points, along 20 lines, or in 20 different areas at the same time, while the damage can also continuously track 2 points - all this by compensating for the current atmospheric data. Its emissivity can be adjusted from 0.01 to 1.5.

Features:

• high-resolution thermal image and real video image recording even at the same time, with notes to be saved
• continuous digital magnification up to 1 - 35x
• rotatable lens
• high resolution 640×480 IR FPA sensor
• 1280×960 pixel LCOS viewfinder for fast use and energy saving 5-inch 720P (HD) LCD touch screen, brightness sensor
• 13 MP real camera image microphone, voice note, playback with speaker
• built-in lamp, which can be used to illuminate the examined object while using the real video image, if the lighting conditions are bad
• laser rangefinder, Bluetooth, digital compass GPS, Glonass, 4G, WiFi
• SD card expandable up to 64 GB, mini HDMI output up to 4 hours of operating time, 2.5 hours of charging time u
• p to 90%
• IP54

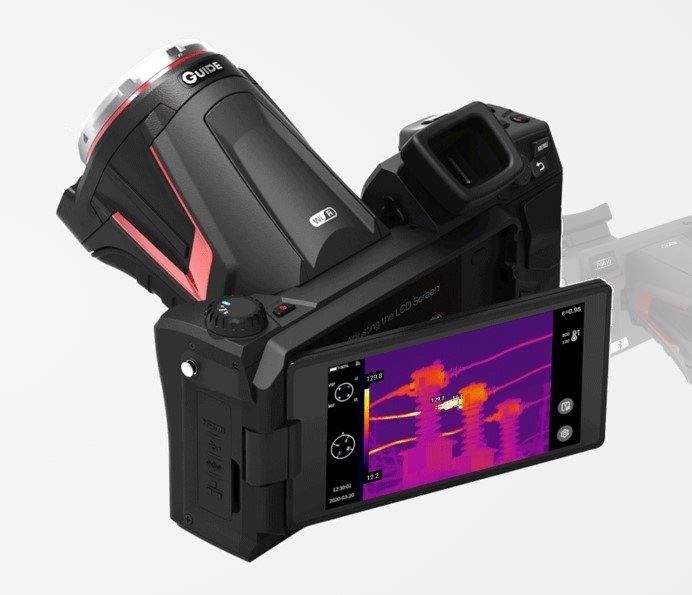

Rotatable display

The display can be unfolded and tilted 270° along its axis. The excellent ergonomics of the device make long examinations comfortable.

Simple Wi-Fi data transfer

Images and videos can be transferred to mobile devices using Wi-Fi. The thermal camera can be controlled remotely with a smartphone. The result of the test performed on the device can be printed immediately on a Wi-Fi printer.

Android operating system for easy expandability

The Android operating system runs on the device, so the software can be easily updated at any time in the future, and new applications can be installed on it. The sophisticated on-board software enables tests and reports to be prepared directly on the device.

Multiple types of image display: thermal image and real video

The PS600 is capable of displaying the thermal image and the real video image separately. In addition, it can be used in PIP (picture in picture) and MIF modes. In PIP mode, the real image is also displayed on the thermal image in a smaller window, so you can compare the examination points of the visible and the thermal image. In MIF mode, the thermal image and the real image are combined by software, so that, for example, different inscriptions or details that give a homogeneous thermal image, but in reality separate details on the image, remain visible. Both the heat and the real image can be saved to the memory card in parallel.

Changeable lenses

The camera has a 25 mm germanium lens, to which an optional wide-angle and telephoto lens can be attached. It has both automatic and electronic focus. The lens of the device can also be rotated.

Basic accessories of the product:

Mobile application

The recordings on the device can be saved to the phone using the application.

Tests can also be carried out with the mobile application, from which a report can be prepared and immediately sent or shared with others. The device can be controlled remotely with the help of the application. We have access to all basic functions such as focus, shutter, electronic zoom, color modes, picture modes, etc.

• live video streaming
• remote control
• investigation and report preparation
• immediate sharing of test results
